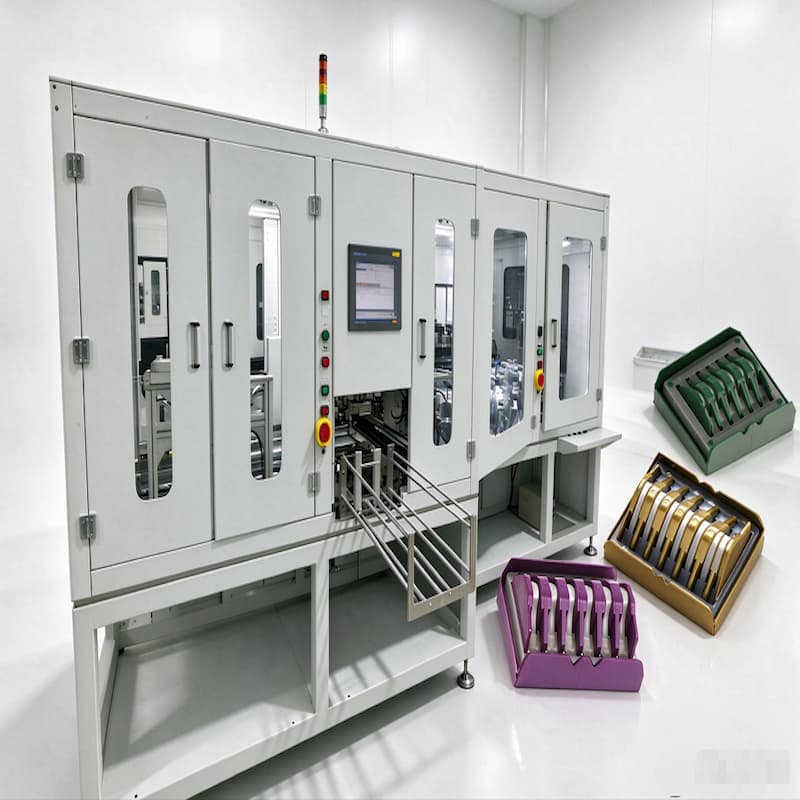

Product Overview
This fully automatic packaging machine is specially designed for medical ligation clip boxes. It integrates automatic label tearing, folding, precise labeling, barcode scanning, multi-angle visual inspection, carton folding, product boxing and lid closing in one compact production line.
The equipment supports ML / L / XL three box sizes with fast size changeover. With stable running speed, complete quality inspection system and low labor dependence, it is an ideal automated packaging solution for medical disposable consumable manufacturers.
Core Advantages
-
Multi-Size Compatibility Supports ML, L, XL three specifications of ligation clip boxes. Standardized adjustment structure enables quick model switching for mixed batch production.
-
Stable Production Capacity Running speed up to 1200 PCS/H with finished product yield over 99%. Consistent output and stable performance for long-time continuous production.
-
Full Visual Inspection System Equipped with multi-station visual inspection and 180° automatic product rotation. It detects foreign matter, stains and defects on four sides and top surface, and verifies label barcode validity. Defective products are automatically sorted and discharged.
-

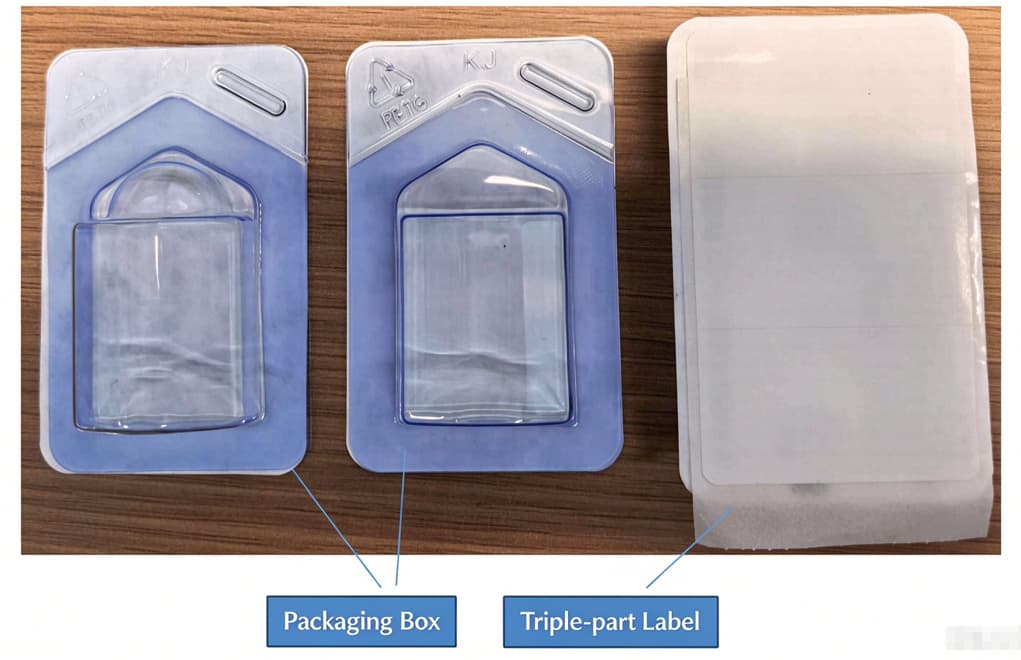

Special Label Folding & Labeling Function Adopts roll label feeding. The robot automatically folds the label at 90° and completes precise cutting and positioning labeling, perfectly adapting to triple-joint labels for medical clip packaging.
-
Full Automatic Carton Packaging Automatically completes color box feeding, box folding, product loading and lid closing. Greatly improves packaging consistency and avoids manual errors.
-
Low Labor Cost Only 1 worker for box feeding and 0.5 intermittent worker for carton refilling. All other processes are fully automatic.
-
Automatic Product Sorting & Discharging Qualified products are grouped and discharged steadily. OK and NG products are separated into different outlets. The finished output can be directly connected to downstream packaging equipment.
Working Process
The machine realizes one-stop automatic production from raw box feeding, label processing, visual labeling, quality inspection to final carton packaging:
-

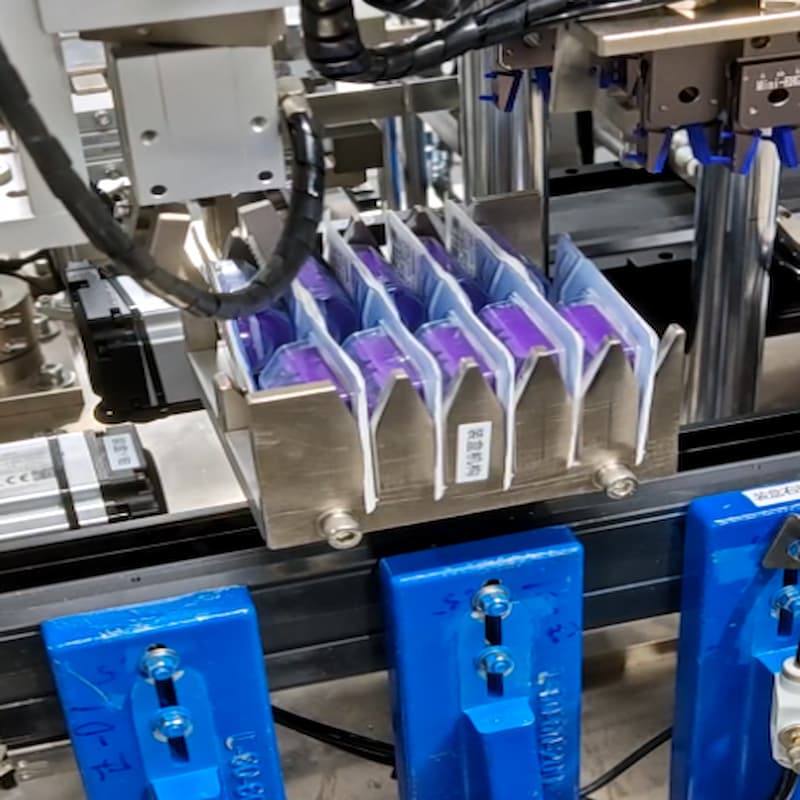

Automatic box feeding and automatic arrangement via elevator hopper
-
Sensor-controlled automatic box conveying and precise positioning
-
Roll label feeding + roller label conveying system
-
Robotic 90° label folding and automatic label cutting
-

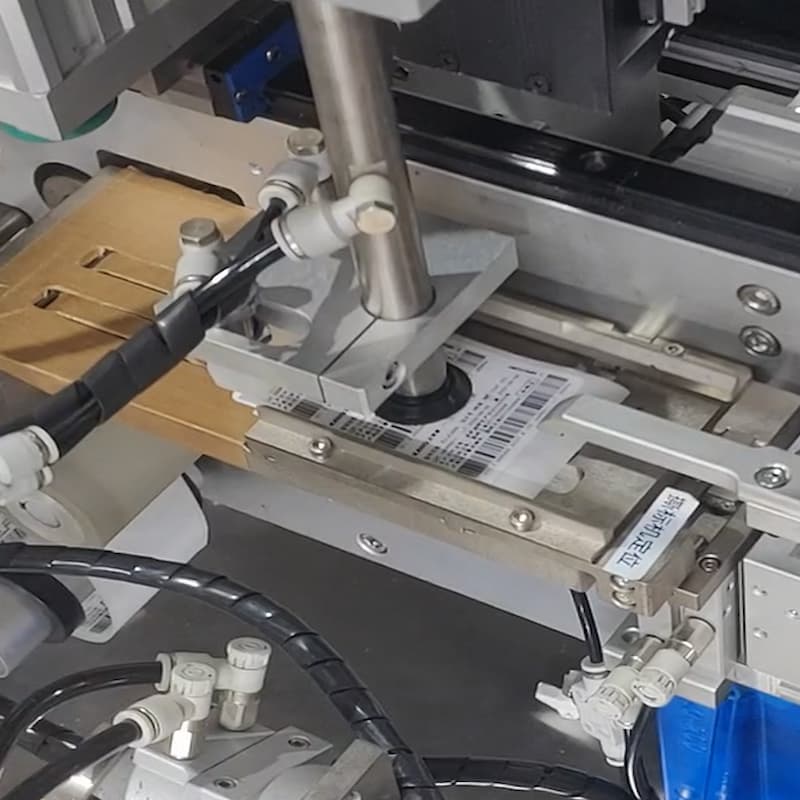

High-precision visual positioning and automatic labeling
-
Barcode scanning inspection for label verification
-
Product flipping and automatic NG product separation
-

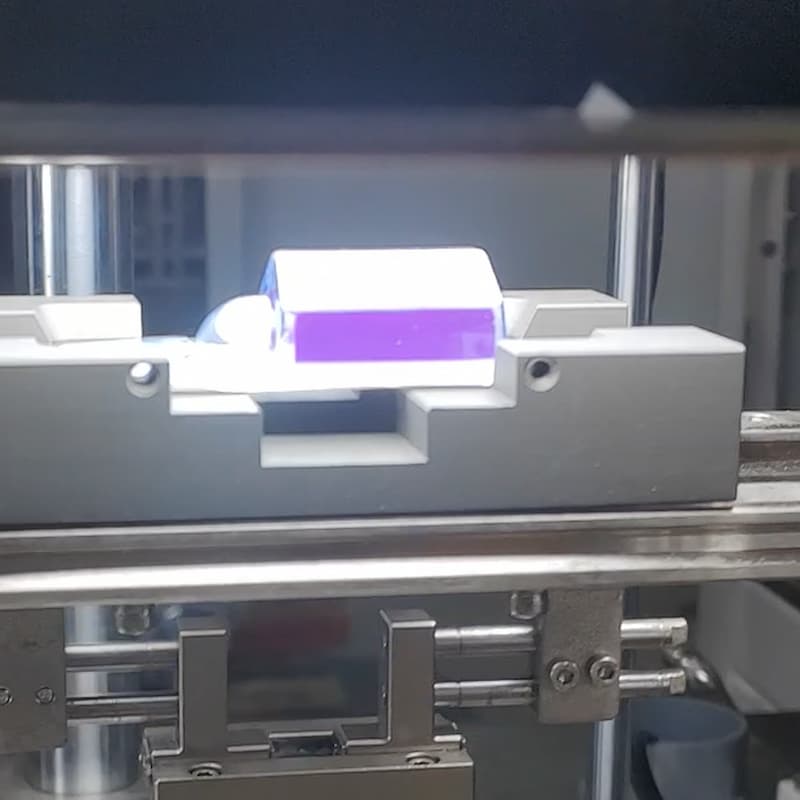

180° product rotation + full-surface visual foreign inspection
-
Automatic grouping and classified discharging
-

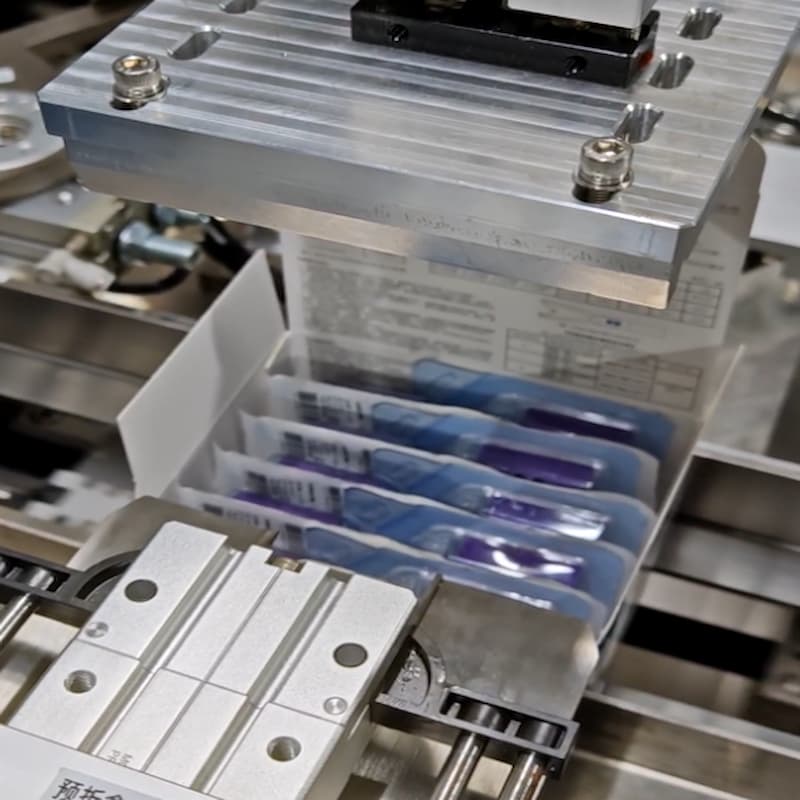

Automatic carton feeding, folding, boxing and capping
Technical Specifications
|
Item
|
Parameter
|
|
Applicable Products
|
Medical ligation clip boxes
|
|
Compatible Sizes
|
ML / L / XL
|
|
Production Capacity
|
1200 PCS/H
|
|
Yield Rate
|
≥99%
|
|
Label Type
|
Roll material, triple-joint label supported
|
|
Label Processing
|
Automatic folding, cutting and visual labeling
|
|
Inspection Function
|
Barcode scanning + 5-sided visual defect & foreign object inspection
|
|
Carton Storage Capacity
|
Max 150 pcs per stack
|
|
Operation Labor
|
1–1.5 persons total
|
|
Discharge Method
|
Automatic grouping, OK/NG separate discharging
|
|
Extended Interface
|
Support MES data tracking connection
|
|
Safety System
|
Safety guard, emergency stop protection
|
Application Scenarios
-
Automatic packaging for disposable medical ligation clips
-
High-precision labeling and boxing for medical consumable boxes
-
Multi-size batch automatic production
-
Factory automated packaging line with full quality inspection
-
Medical packaging traceability production project
FAQ
Q1: What box sizes does this machine support? A: It supports ML, L, XL three common sizes of ligation clip boxes with fast changeover.
Q2: What is the production speed? A: Stable capacity 1200 PCS/H with over 99% high yield.
Q3: Does the machine support label folding? A: Yes. It can automatically fold labels 90° and cut precisely for special triple-joint labels.
Q4: What quality inspection does it support? A: Barcode scanning verification + full 5-sided visual inspection (four sides + top) for defects, stains and foreign objects.
Q5: Can it separate defective products automatically? A: Yes. Unqualified products will be automatically diverted to NG area without manual sorting.
Q6: Can this machine connect with other packaging equipment? A: Yes. Finished products are grouped and output orderly, easy to connect with downstream packing machines.
