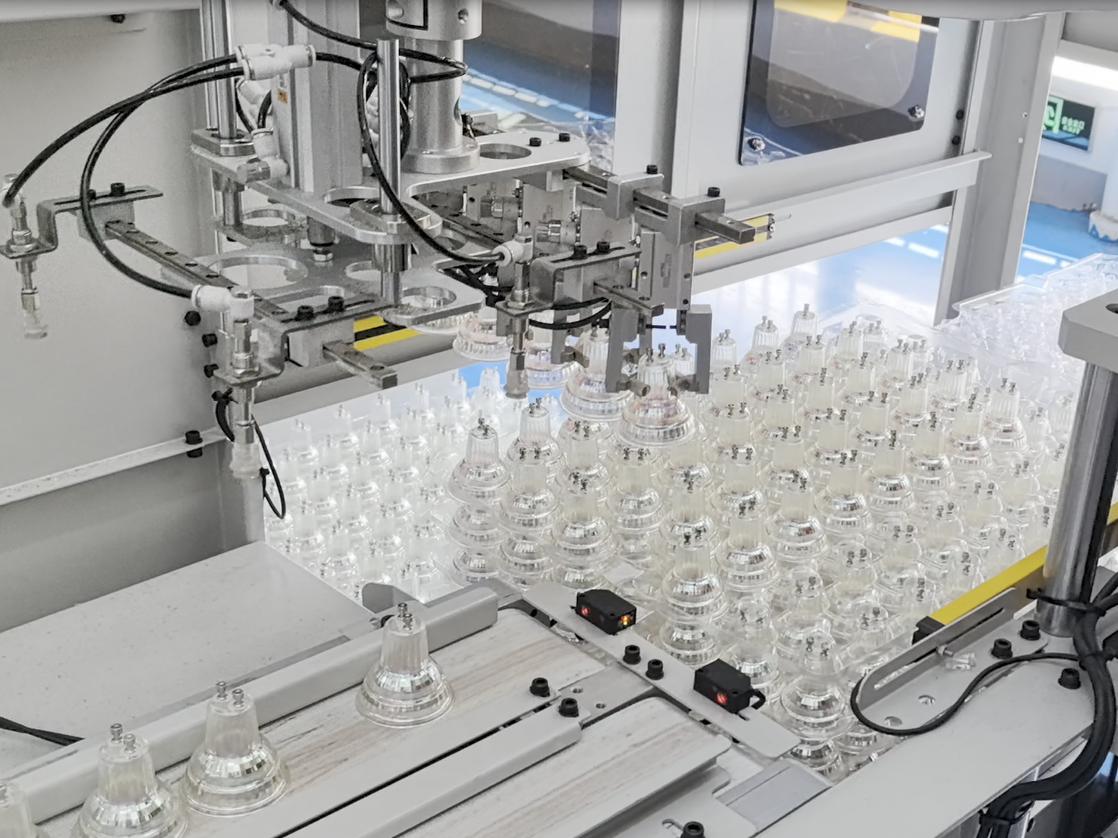

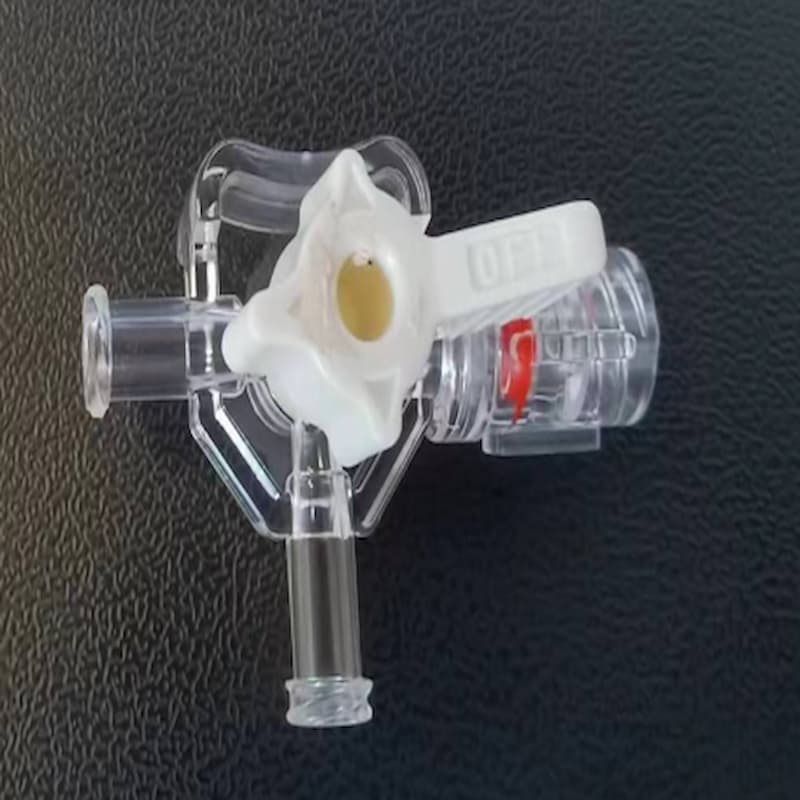

Fully Automatic Assembly Machine for Medical High-Pressure Three-Way Valve
Note: The structure of high-pressure three-way valves varies among different manufacturers. We do not display detailed product accessories here. Custom non-standard automation solutions can be designed according to your actual products. This case only shows partial assembly processes. Please contact us for more detailed information.
Process Flow Breakdown
| No. | Process | Description | Labor Required | Remarks |
|---|---|---|---|---|

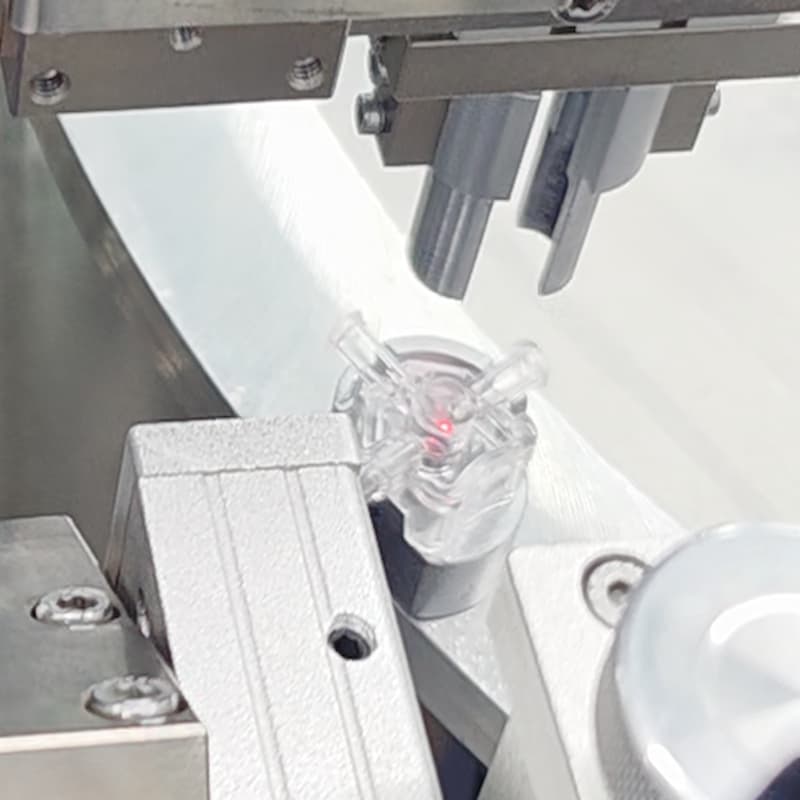

| 1 | Automatic valve body feeding | / | 0.3 person | Vibratory bowl feeding |
| 2 | Material inspection | / | 0 person | / |

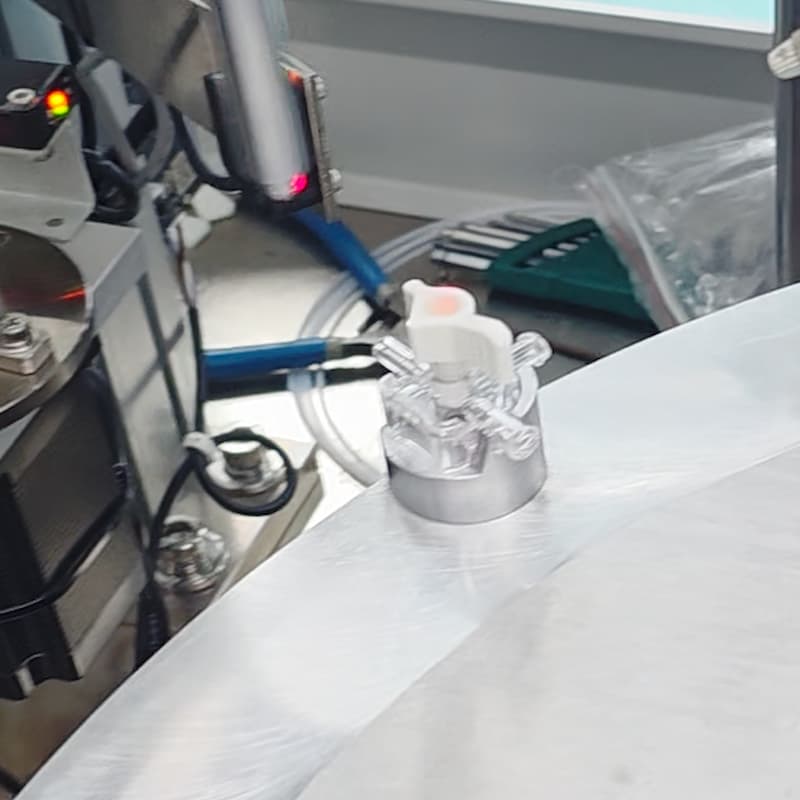

| 3 | Automatic silicone oil injection | / | 0 person | Automatic oil filling |
| 4 | Automatic valve core feeding | / | 0.3 person | Vibratory bowl feeding |

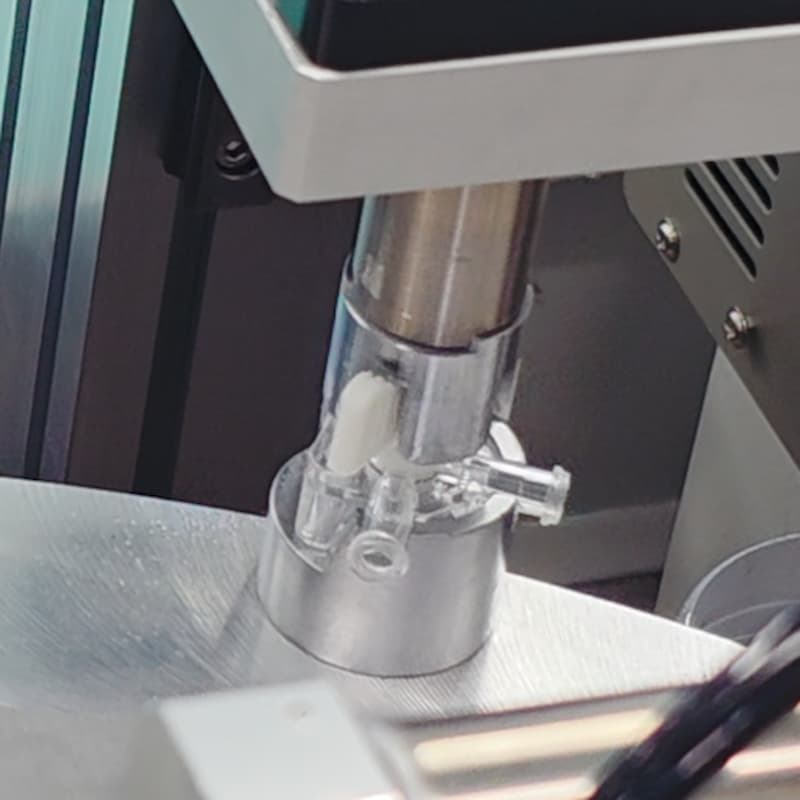

| 5 | Automatic valve core pressing & angle positioning | / | 0 person | / |
| 6 | Automatic UV glue dispensing | / | 0 person | / |
| 7 | Automatic high-pressure threaded connector feeding | / | 0 person | Vibratory bowl feeding |
| 8 | UV curing oven processing | / | 0 person | UV glue curing |
| 9 | Automatic finished product unloading | / | 0 person | Unload to material tray |

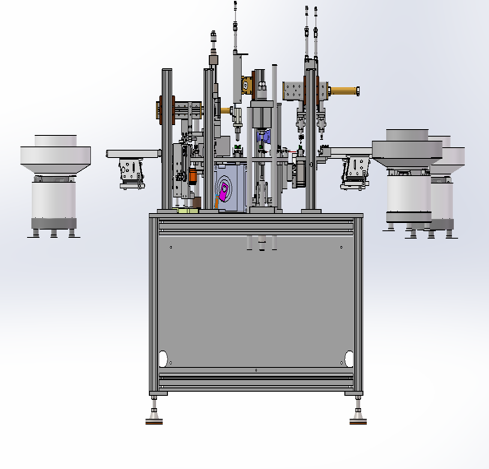

Assembly Equipment Layout
Equipment Overview
Basic Parameters
Standard Configuration List
| Components | Brand | Remarks |
|---|---|---|
| Linear Guide & Slider | HIWIN, AIRTAC | Original genuine |
| PLC Controller | Delta | Original genuine |
| Pneumatic Components | AIRTAC / EMC | Original genuine |
| Motion Controller | Synrit | Original genuine |
| HMI Touch Screen | Weinview, Delta | Original genuine |
| Relay | Omron | Original genuine |
| Switch Power Supply | Delta, Meanwell | Original genuine |
| Asynchronous Motor | JINGYAN | Original genuine |
| Servo Motor | COSY, HCFA | Original genuine |
| Stepper Motor | XINGFENGYUAN | Original genuine |
| Bearing | NSK, HRB | Original genuine |
| Photoelectric Sensor | Panasonic & equivalent brands | Original genuine |
| Magnetic Switch | AIRTAC | Original genuine |
